In Standard Wireworld, XOR is a Universal Gate Primitive
At first, the title may seem surprising. Surely not — we know that in Boolean Logic, the symmetric $\text{XOR}$ operation is not universal. That’s true, but Wireworld is a Cellular Automaton, and the physics of signal propagation and collision are just as important as the abstract Boolean functions. We must consider how logic elements are synchronized in time.
Our discovery is that the physics of the Standard Wireworld ruleset allows a $\text{XOR}$ gate pattern to function as a universal primitive when combined with precise timing.
We demonstrate this by building an AND-NOT gate ($A \land \neg B$), a known universal gate, using only two $\text{XOR}$ primitives and simple conductive wires (delay lines).
The Minimal Universal Circuit

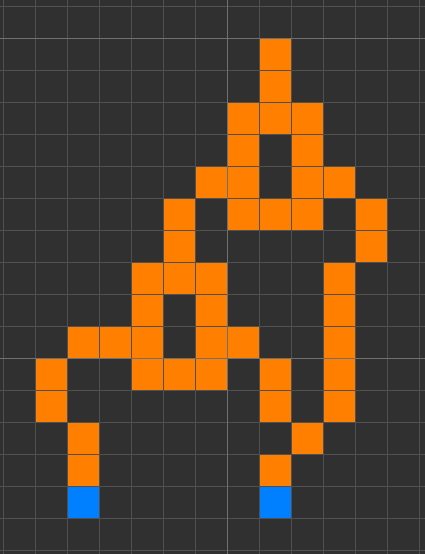

The circuit above is composed of two $\text{XOR}$ gates: the lower gate ($\mathbf{p}$) and the upper gate ($\mathbf{q}$). The signal splitter for $\mathbf{B}$ is a trivial wire fork, which is considered part of the routing infrastructure, not a dedicated logic gate.
Here is the breakdown of the logic for the AND-NOT function:
| Inputs | Desired $\text{AND-NOT}$ Output | Circuit Behavior |
|---|---|---|
| $\mathbf{A=H}, \mathbf{B=L}$ | HIGH | $\mathbf{B}$ is LOW. Signal $\mathbf{A}$ is unimpeded. It passes through $\mathbf{p}$ and $\mathbf{q}$, and arrives at the output HIGH. |
| $\mathbf{A=L}, \mathbf{B=L}$ | LOW | No signals are present. Output is LOW. |
| $\mathbf{A=H}, \mathbf{B=H}$ | LOW | $\mathbf{B}$ is HIGH. $\mathbf{B}$ splits into $\mathbf{B_1}$ and $\mathbf{B_2}$. At gate $\mathbf{p}$, $\mathbf{B_1}$ arrives first and passes through, simultaneously blocking $\mathbf{A}$ due to the timing offset. The passing $\mathbf{B_1}$ signal then meets $\mathbf{B_2}$ at gate $\mathbf{q}$. The synchronous arrival of $\mathbf{B_1}$ and $\mathbf{B_2}$ at $\mathbf{q}$ results in $\text{XOR}$ cancellation ($\text{HIGH} \oplus \text{HIGH} = \text{LOW}$), and the output is LOW. |
| $\mathbf{A=L}, \mathbf{B=H}$ | LOW | Only $\mathbf{B}$ is HIGH. As above, $\mathbf{B}$ splits into $\mathbf{B_1}$ and $\mathbf{B_2}$. $\mathbf{B_1}$ passes through $\mathbf{p}$ and meets $\mathbf{B_2}$ at $\mathbf{q}$. As above, the precise synchronous arrival of the $\mathbf{B}$ signals at $\mathbf{q}$ causes them to cancel out. Output is LOW. |
The Power of $\text{XOR}$
This circuit works because our $\text{XOR}$ gate, when constructed in Wireworld, is engineered to utilize two essential, timing-dependent modes:
- Timing-Dependent Blocking (Inhibition): When inputs are offset by a precise time (e.g., $\mathbf{B_1}$ arrives before $\mathbf{A}$ at gate $\mathbf{p}$), the first signal passes through and puts the gate into a refractory state, causing the second signal ($\mathbf{A}$) to be completely blocked (annihilated) or diverted by the gate’s internal geometry.
- $\text{XOR}$ Mode (Cancellation): When inputs ($\mathbf{B_1}$ and $\mathbf{B_2}$) are precisely synchronized, the gate acts as an Inhibitor, converting the $\text{HIGH} \oplus \text{HIGH}$ state into a physical LOW output via signal collision/annihilation. This is crucial for the $\neg B$ part of the logic.
This is what makes the $\text{XOR}$ gate special: the necessary informational asymmetry (the $\text{NOT}$ operation) is not a separate gate, but a mode of operation inherent in the gate’s physical construction and timing sensitivity.
Conclusion
We have shown that in the canonical Standard Wireworld CA, the $\text{XOR}$ gate — when combined with precise signal timing — is sufficient to build an AND-NOT gate using only two instances. In this way, we prove that the $\text{XOR}$ primitive can be considered Universal, a major step toward establishing the absolute minimal logical basis for Turing Completeness in Standard Wireworld.
